Ab2d.ReaderWmf - metafile importer

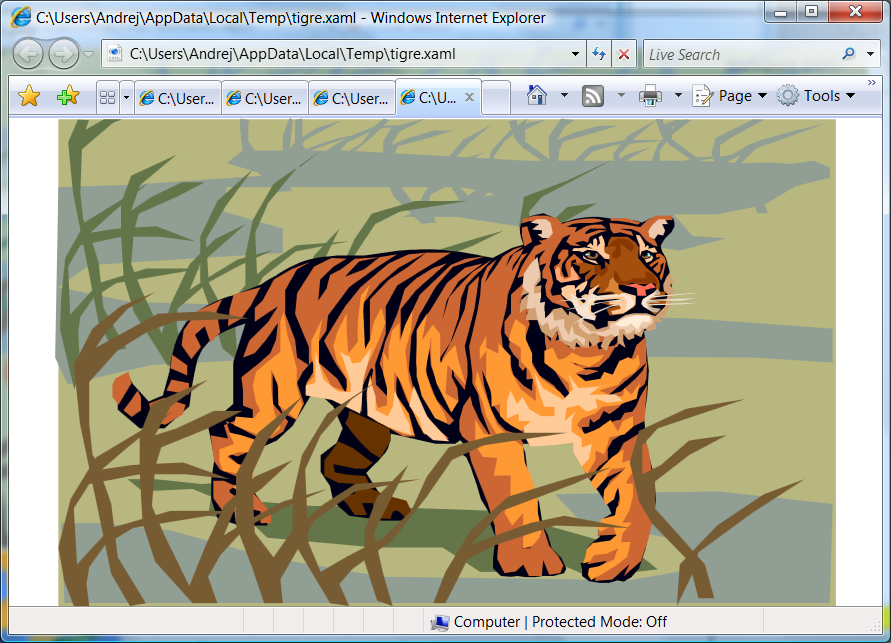

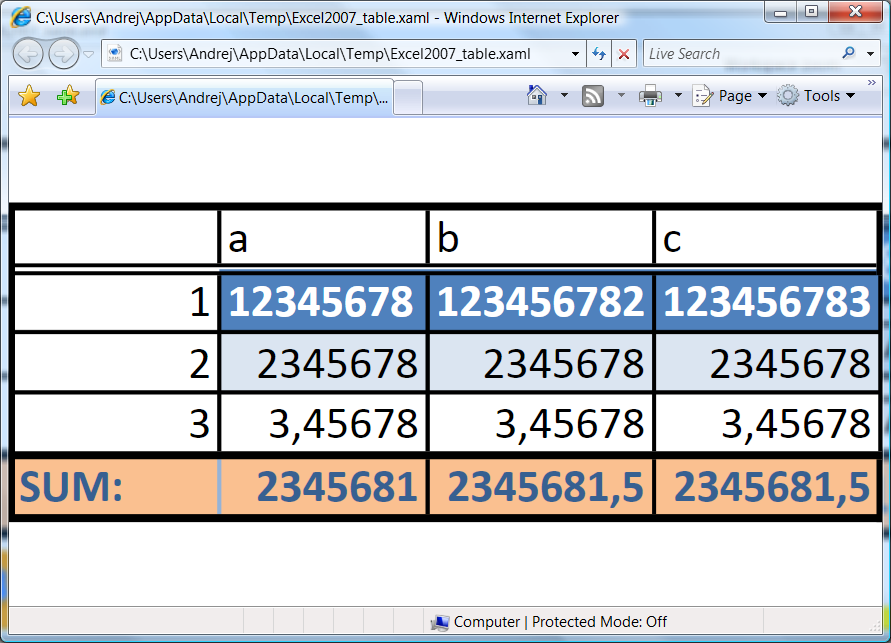

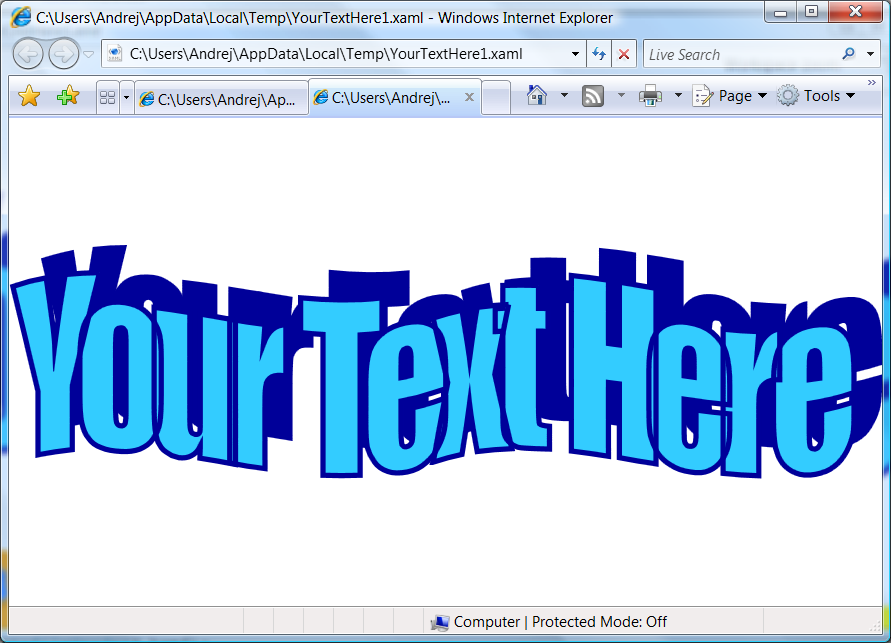

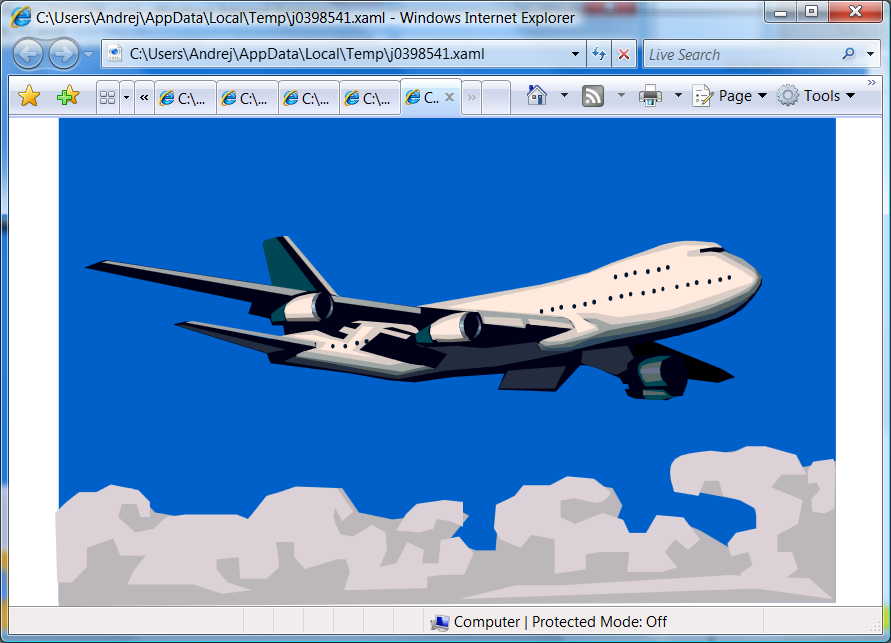

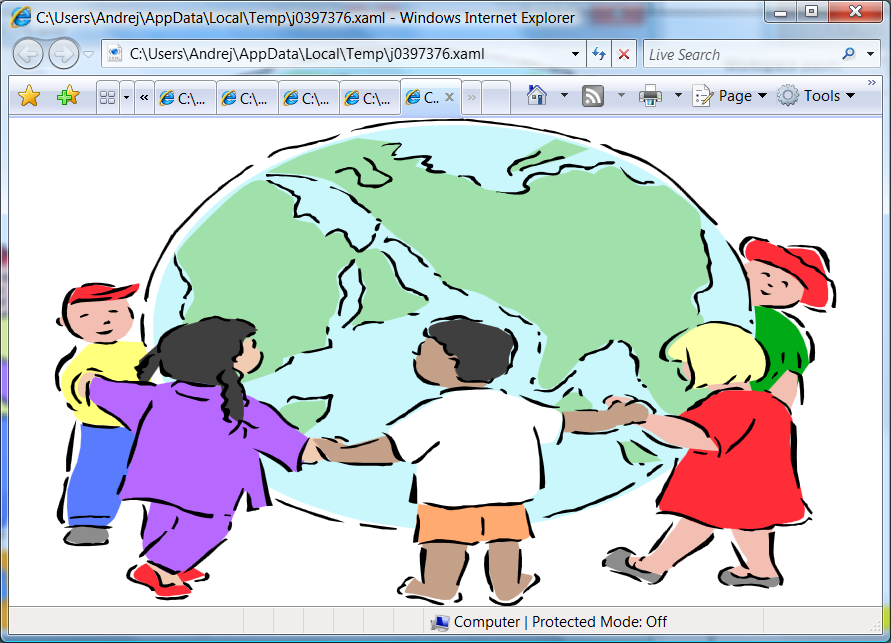

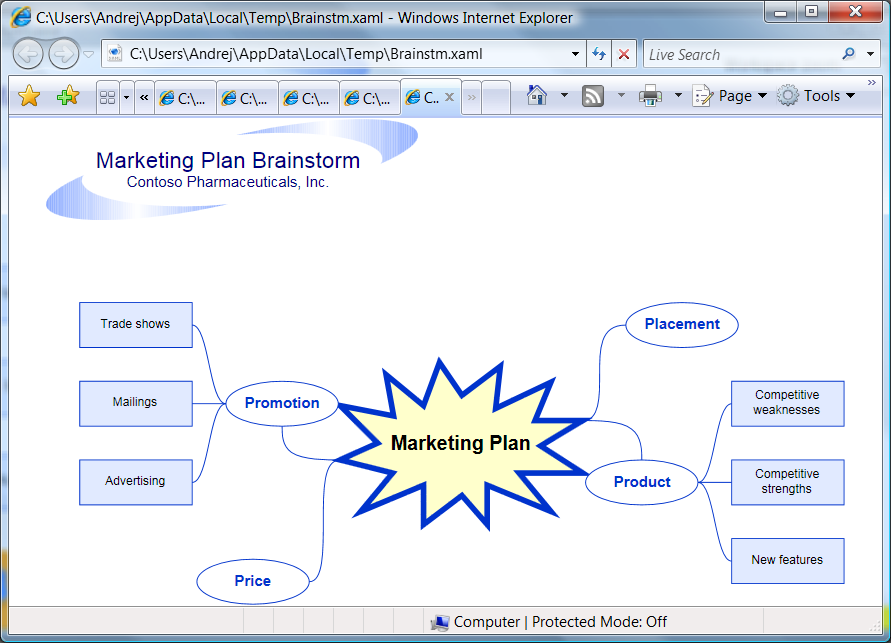

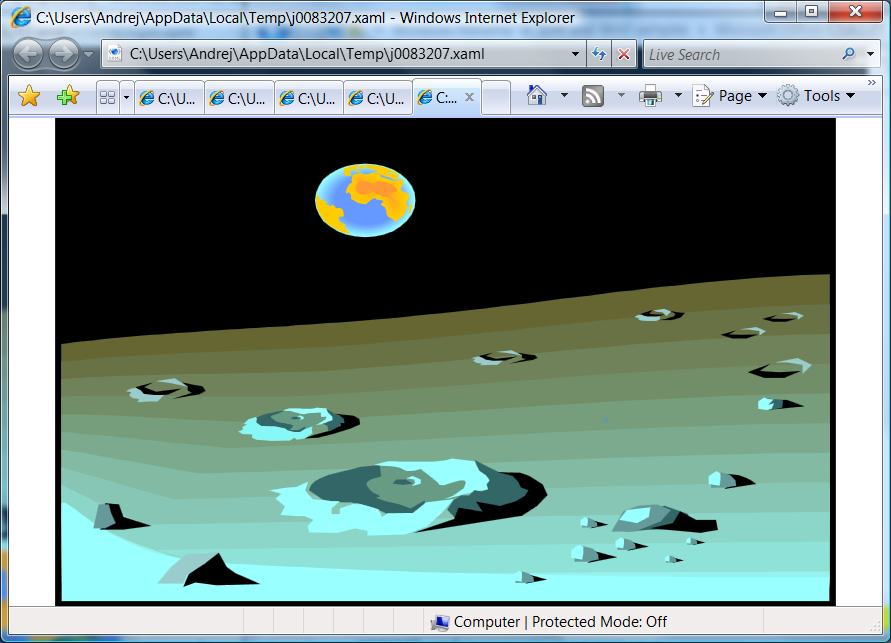

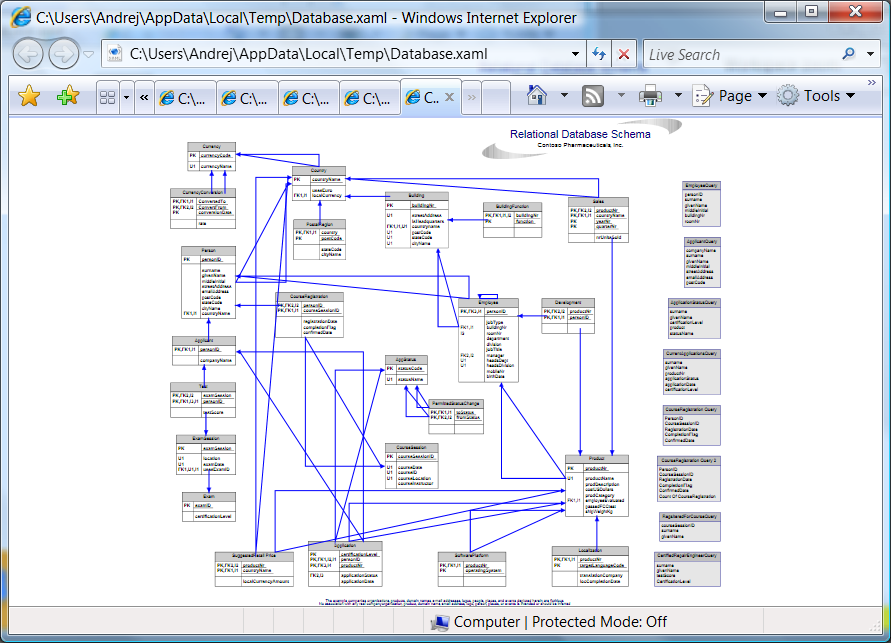

Ab2d.ReaderWmf is a class library that can be used to read Windows metafiles (wmf) and also Enhanced Metafiles (emf) in runtime and import its elements into WPF's Viewbox.

Note that Ab2d.ReaderWmf cannot be used in Silverlight applications - but can be used in XBAP Web Browser application. For Silverlight use Paste2Xaml and select export as Silverlight xaml in the export options.

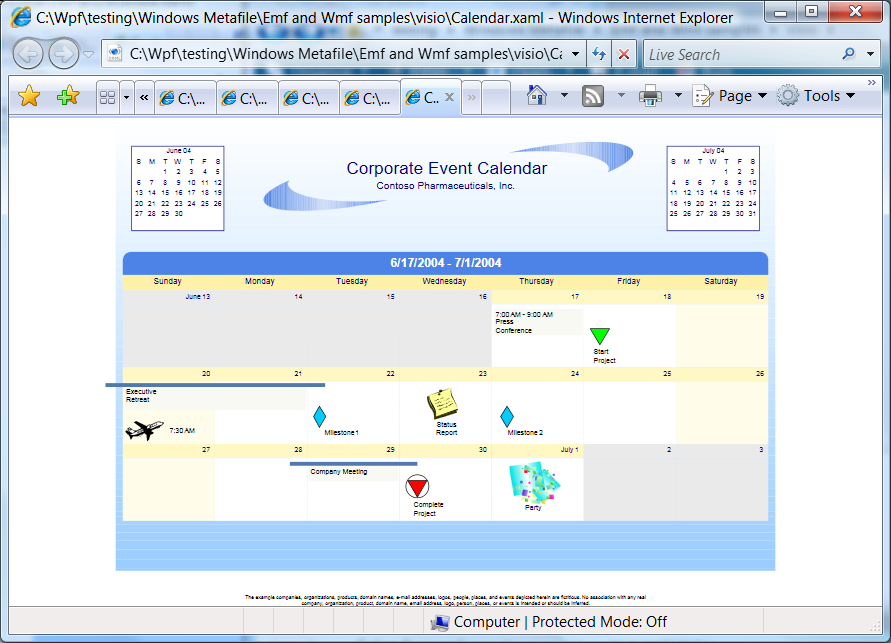

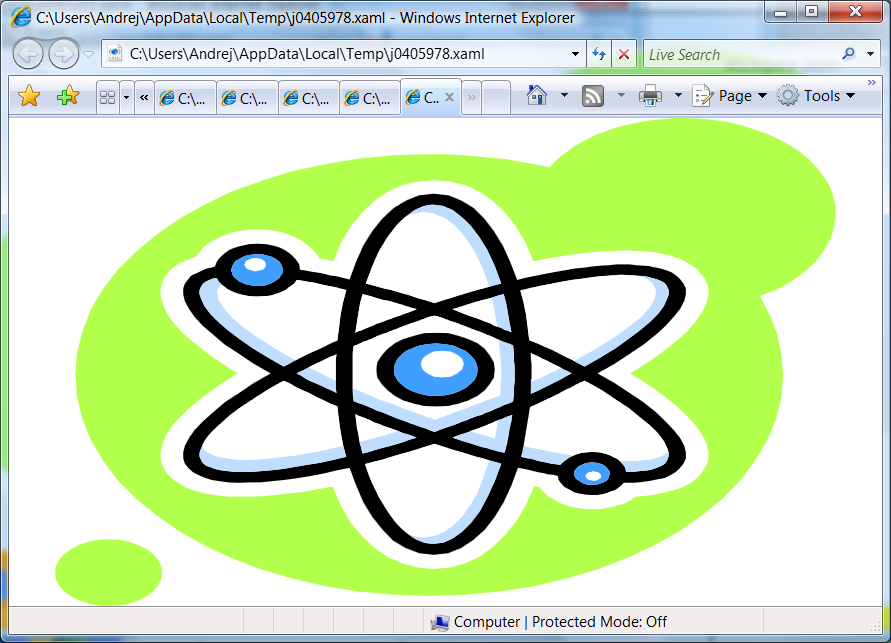

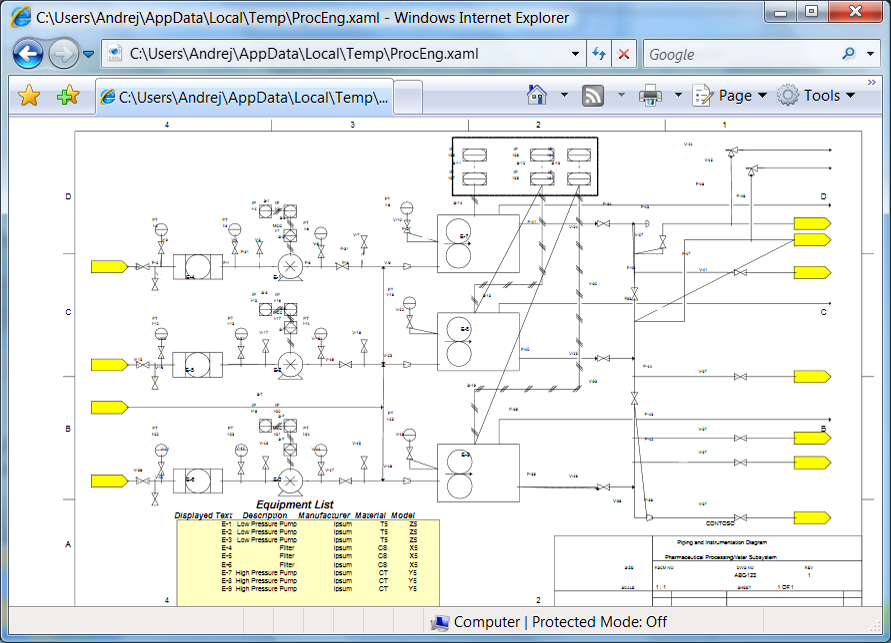

The library is used by Paste2Xaml application. It can also be used in any other application which is using metafile cliparts. With ReaderWmf library there is no need to convert them into xaml - metafiles can be simple imported at runtime when needed.

Note that Ab2d.ReaderWmf cannot be used in Silverlight applications. But it is possible to convert metafiles into XAML for Silverlight and Windows Store (Windows RT) applications with the Paste2Xaml converter.


Read Windows metafiles (wmf) or Enhanced Metafiles (emf) file in XAML:

  • In project add reference to Ab2d.ReaderWmf
  • Add namespace definition into root xaml element (for example Window):
    xmlns:ab2d="clr-namespace:Ab2d.Controls;assembly=Ab2d.ReaderWmf"
  • Use Ab2d.Controls.WmfViewbox to read a metafile file as Shapes - set Source property to metafile location.
  • Use Ab2d.Controls.WmfDrawing to read a metafile file as Drawings - set Source property to metafile location.

Source property can be uses just as Source of the Image control. Depending on the location and metafile build action use of the following patterns to load the file. The following examples show how to read matafile (as Shapes) from various resources.

Location: samples folder in project, Build Action: Content
<ab2d:WmfViewbox Source="samples/myClipart.emf"/>

Location: samples folder in project, Build Action: Resource - embedded into assembly
<ab2d:WmfViewbox Source="samples/myClipart.emf"/>

Location: internet, Build Action: not included in project
<ab2d:WmfViewbox Source="http://www.myweb.com/images/myClipart.emf"/>

Location: loose emf file on the local disk, Build Action: not included in the project
<ab2d:WmfViewbox Source="c:\temp\myClipart.emf"/>

Location: loose emf file in the application directory, Build Action: not included in the project
<ab2d:WmfViewbox Source="pack://siteoforigin:,,,/myClipart.emf"/>
